1.1 Features
- GaN-on-Silicon E-mode HEMT technology
- Very low gate charge
- Ultra-low on Resistance
- Very small package size
- Zero reverse recovery charge
150V Enhancement-mode GaN Power Transistor

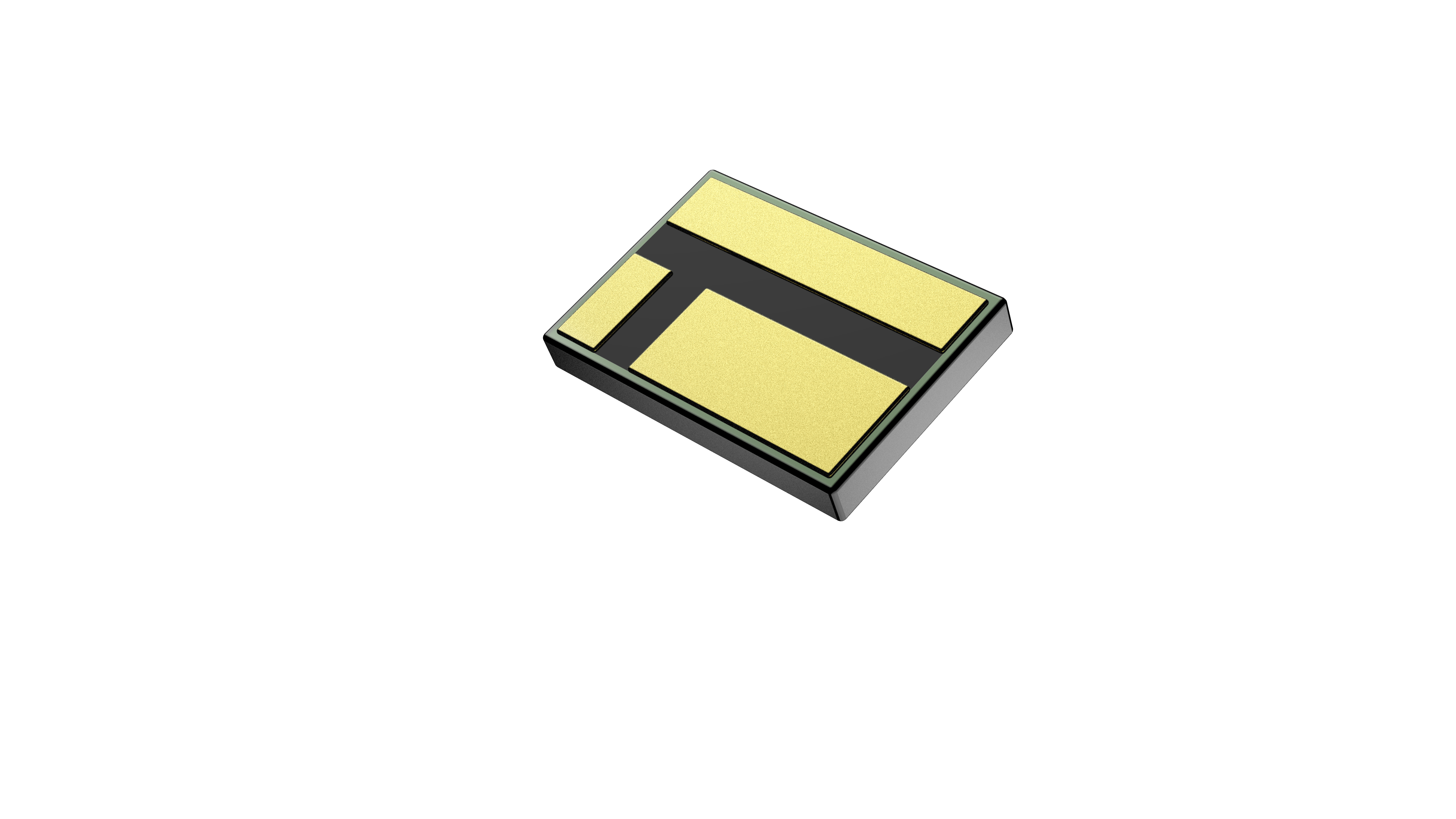

GaN-on-Silicon enhancement mode high-electron-mobility-transistor(HEMT) in Flip chip LGA (FCLGA) with 3.2mm x 2.2mm package size.
| Platform (S150E2.0) | ||||
|---|---|---|---|---|
| Product (INN150LA070A) | ||||
| Test Items | Test Conditions | Sample Size (Unit x Lot) | #Fail | Result |
| MSL3 | T=30°C, RH=60%, 3 x reflow, 192hrs | 25 x 3 | 0 Fail | Pass |
| HTRB | T=150°C, VD=120V, 1000hrs | 77 x 3 | 0 Fail | Pass |
| HTGB | T=150°C, VG=5.5V, 1000hrs | 77 x 3 | 0 Fail | Pass |
| HTSL | T=150°C | 77 x 3 | 0 Fail | Pass |
| TC | -40 to +125°C, Air, 1000Cys | 77 x 3 | 0 Fail | Pass |
| HAST | T=130°C, RH=85%, VD=42V, 96hrs | 77 x 3 | 0 Fail | Pass |
| HTOL | QR system: Tj=125°C, Vplatform=120V, Power out=120W, Vout=20V, f=130KHz |
8 x 3 | 0 Fail | Pass |
| HBM | All Pins | 3 x 1 | 0 Fail | Class 1B |
| CDM | All Pins | 3 x 1 | 0 Fail | Class C2b |

High Efficiency:93% @90Vac
Small Size:85mm*50mm*23mm
High Power Density:23W/in3
Notebook USB PD3.1
Power Tools
| Parameter | Value |
|---|---|
| VDS,max | 150V |
| RDS(on),max @ VGS = 5 V | 7mΩ |
| QG,typ @ VDS = 85 V | 7.6nC |
| ID,pulse | 120A |
| QOSS @ VDS = 85 V | 47nC |
