With diversified packaging options and integrated protection features, Innoscience’s new GaN solutions enable high frequency, high efficiency power system
As a global leader in GaN technology, Innoscience has announced the launch of our four new 700V SolidGaN Devices: ISG6123TA, ISG6123TP, ISG6124TA, and ISG6124TP.
These devices adopt industry-standard TOLL and TOLTP high-power packages, offering compatibility with both traditional controllers and motor driver applications, streamlining design and simplifying adoption across various applications.
As power demands continue to surge, power systems are evolving rapidly with server supplies scaling up from 2kW to 6kW, PV inverters pushing for 99% efficiency, and onboard chargers (OBC) now targeting over 3.3kW/L in power density. For engineers, this translates into increased system complexity, challenging thermal management, and reliability concerns. Innoscience’s ISG612x SolidGaN series addressed these challenges with high-frequency switching, superior power density, and robust thermal performance, enabling compact, reliable, and high-efficiency GaN-based power systems.
Innoscience on Redefining GaN Value
Building a “seamless replacement”GaN Ecosystem
- 10-24V wide gate drive compatibility: supports SiC/IGBT controllers with ease
- Pin-to-pin compatible design: TP and TA package versions share functionally identical pinouts for effortless migration
- Integrated LDO & Gate Clamp: Mitigates Vgs surge risks and eliminates the need for external gate clamp circuitry
Performance Breakthrough
- Dv/dt Robustness: withstands up to 100v/ns, plus 0.5Ω miller clamp for robust gate stability, removing the need for additional clamping circuitry
- Zero reverse recovery (Qrr=0): Switching losses are reduced by up to 40%
- Exceptional Thermal Resistance:
TOLT package: 0.480.48℃/W（ISG6124TP）
TOLL package：0.46℃/W（ISG6123TA）
Application Advantage Upgrade
- Ideal for 1kW to 6kW high-power applications including server power supplies, HVAC systems, and industrial power systems
- Compared to traditional silicon solutions, efficiency improves by 1-2% and power density increased up to 50%
Competitive Benchmarking: SolidGaN vs. Traditional Solutions
- 3x switching frequency: SolidGaN enables up to 2MHz operation versus 650kHz for comparable SiC devices
- 50% increase in power density (based on test data)
- Up to 60% size reduction: thanks to simplified driver and protection circuitry integration

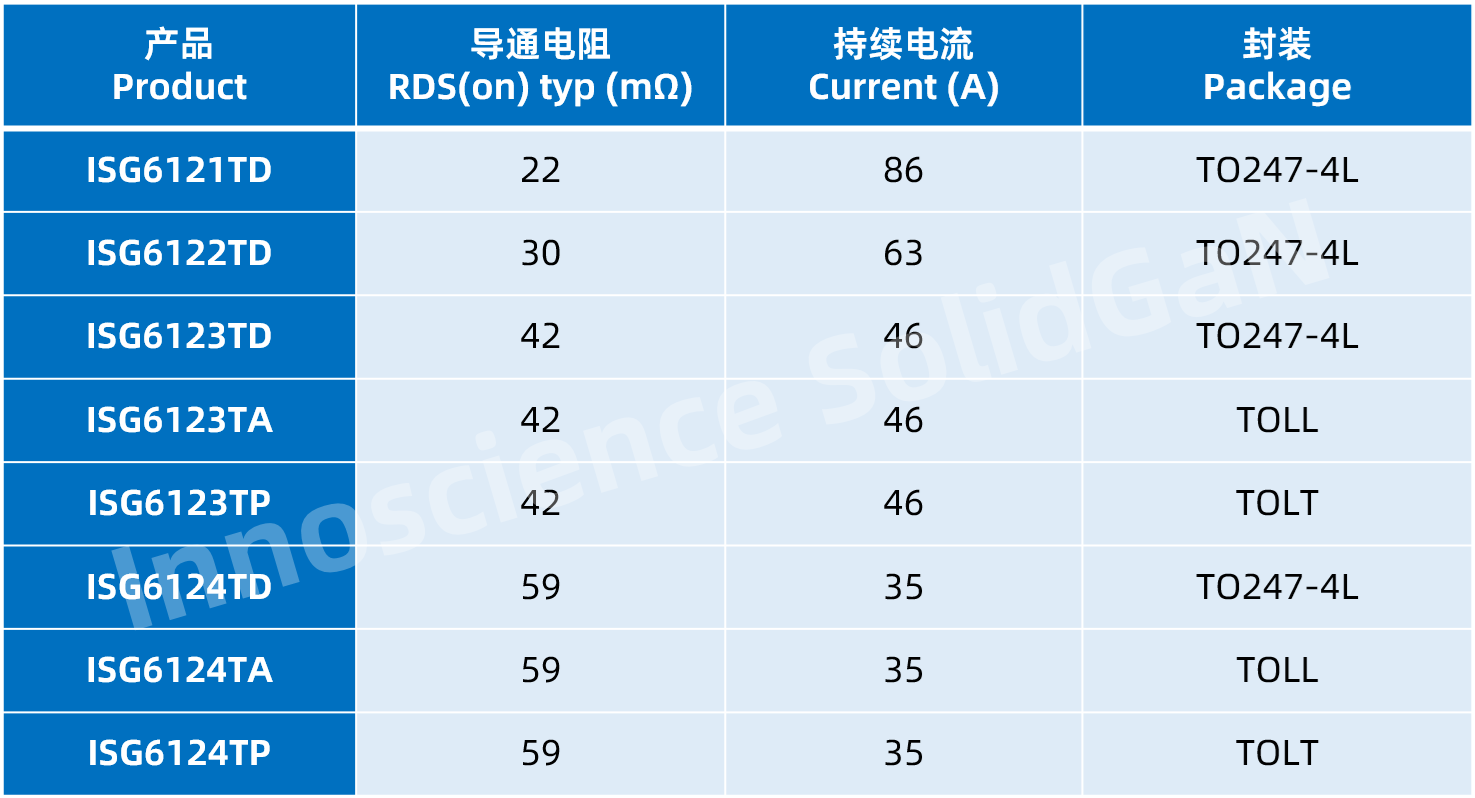

Innoscience 612x Series Product Table
From single feature breakthroughs to comprehensive solution offerings, Innoscience’s ISG612X family now includes 8 models: offering engineers broad flexibility in packaging, simplified design, and performance without compromise. Engineers no longer need to choose between ease of use and performance. From server power, industrial drivers, to onboard chargers, SolidGaN empowers design to push boundaries, all without designing from scratch.
For more information:
To download the full ISG612x product datasheet and technical specs, please visit: www.innoscience.com
To request ISG612x samples, contact charlesbailley@innoscience.com or reach out directly to our local sales team.
