1.1 特性
- 增强型晶体管常闭电源开关
- 超高开关频率
- 无反向恢复
- 低栅极电荷，低输出电荷
- 符合JEDEC标准的工业应用资格
- ESD保护
- RoHS，无铅，符合REACH
产品
INN650TA050AH
650V GaN增强型功率晶体管
1. 产品描述

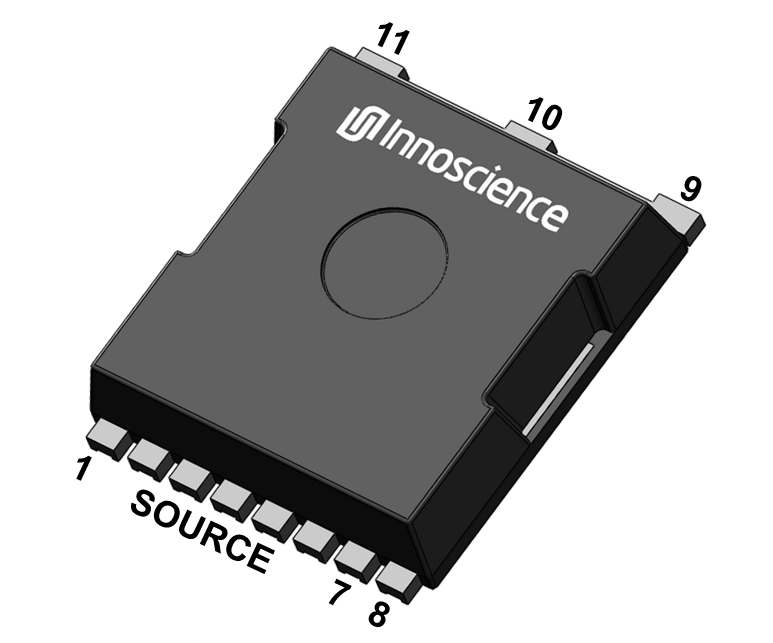

采用TOLL封装的650V增强型GaN功率晶体管
1.2 应用市场
- AC-DC转换器
- DC-DC转换器
- DC-AC转换器
- 高密度功率转换
- 高效功率转换
2. 可靠性测试
| Platform Product (INN650TA030AH) | ||||
|---|---|---|---|---|
| Spin-off Product (INN650TA050AH) | ||||
| Test Items | Test Conditions |
Sample Size (Unit x Lot) | #Fail | Result |
| HTRB | T=150°C, VDS= 560V | 77 x 1 | 0 Fail | Pass |
| HTGB | T=150°C, VGS= 7V | 77 x 1 | 0 Fail | Pass |
| HTGB(-) | T=150°C, VGS= -6V | 77 x 1 | 0 Fail | Pass |
| LTRB | T=-40°C, VDS= 650V | 77 x 1 | 0 Fail | Pass |
| LTGB | T=-40°C, VGS= 7V | 77 x 1 | 0 Fail | Pass |
| LTGB (-) | T=-40°C, VGS= -6V | 77 x 1 | 0 Fail | Pass |
| TC | -55 to +150°C, Air | 77 x 3 | 0 Fail | Pass |
| HAST | T=130°C, RH=85%, VDS=100V | 77 x 3 | 0 Fail | Pass |
| H3TRB | T=85°C, RH=85%, VDS=560V | 77 x 3 | 0 Fail | Pass |
| HTSL | T=150°C | 77 x 3 | 0 Fail | Pass |
| IOL | ΔTj ≥ 100℃, Ton=Toff=2min | 77 x 1 | 0 Fail | Pass |
| Solderability | 1. Precondition: 8H 2. Pb-free, 245±5°C, 5±0.5S. |
10 x 1 | 0 Fail | Pass |
| HTOL | Vplatform=450V,Irms=15A, Fre=65KHZ,Tj=125°C | 8sets x 3 | 0 Fail | Pass |
| MSL3 | T=30°C, RH=60%,3 x reflow | 25 x 3 | 0 Fail | Pass |
| HBM | All Pins | 3 x 1 | 0 Fail | Class 2 |
| CDM | All Pins | 3 x 1 | 0 Fail | Class C3 |
| Note: Package type Spin off have the same package process and design rules | ||||
